We can’t help but feel sentimental about the legendary E23 and E24. These vehicles are time machines – they deserve to be looked after today as much as they were when they rolled out of the factory. The instrument cluster and its supporting boards are one of the very important parts of getting accurate driving information.
Why Cluster Boards Matter
The instrument cluster is not just for displaying speed and the fuel level, but giving the driver critical up-to -date information about the performance of their car. When these systems go, it’s more than just inconvenient — it can make for less safe and less reliable driving.
Cluster boards of classic cars, such as the BMW E23 and E24, can show signs of wear and tear due to age. By restoring or replacing them, you can maintain your classic BMW’s ability to provide accurate readings while you’re on the road.
Main Cluster Board Function
The main cluster board for BMW E23 and E24 is to the instrument cluster, like the brain is to the central nervous system. It is the device that processes electrical connections and keeps gauges, warning lights, and indicator lamps functioning properly.
Cracked solder joints, bad caps, and corroded traces are all common failure modes over time. No power, the power issue is the most common board issue you can have.
- Inaccurate gauge readings
- Flickering or dead warning lights
- Occasional loss of all power in dashboard
Owners must prioritize the maintenance of this board to ensure its functionality and authenticity for an extended period of time.

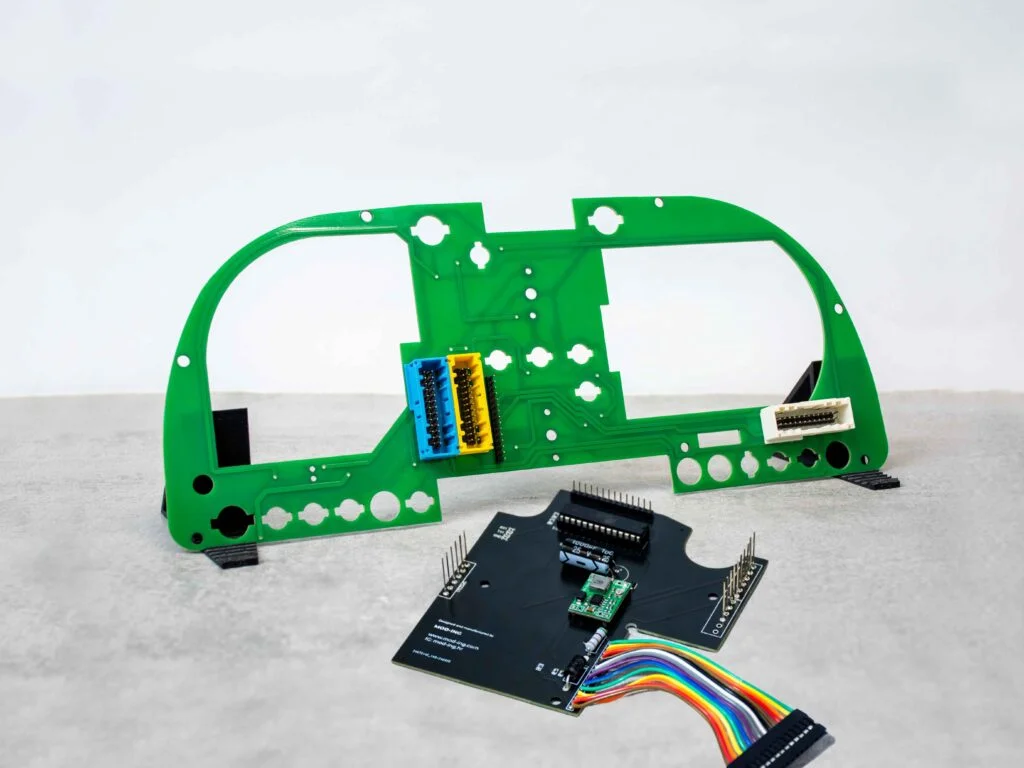

The SI (Service Indicator) Board, or Cluster SI Board, and its Significance
For service interval (SI) functions, the cluster SI board for BMW E23, E24, and E28 works in tandem with the main board. This board is responsible for the service indicator lights, and it allows the drivers to see when maintenance is due.
SI Board Problems These are generally concerned with the rechargeable batteries and can be caused by:
- Service lights staying on permanently
- Reset failures
- Erratic gauge behavior
Replacing it with a fresh replacement board also solves battery issues but preserves the cluster as-designed.
So Why Would You Want to Repair or Replace Your Cluster Boards?
There are many advantages to upgrading your existing teeth with high quality replacements or restorations:
- Accurate: Does not change the speed, fuel, and temperature.
- Safety: No more driving with malfunction lights.
- Durable: Increases the lifespan of your classic BMW’s gauge cluster.
- Original Design: Classic appearance, more reliable.
Final Thoughts
BMWs such as the E23, E24, and E28 are not merely vehicles, but rather, mobile relics of the past. By preserving vintage components like the main cluster board for BMW E24 and E24 models and the cluster SI board for BMW E23, E24, and E28 models, enthusiasts guarantee the longevity of their vehicles and the satisfying ride quality they have grown to love.
Restoring a BMW is much more than simply getting it back on the road; it’s also about preserving the quality and attention to detail that went into making that particular model.
